Water Downpipe & Bender Forming Machine

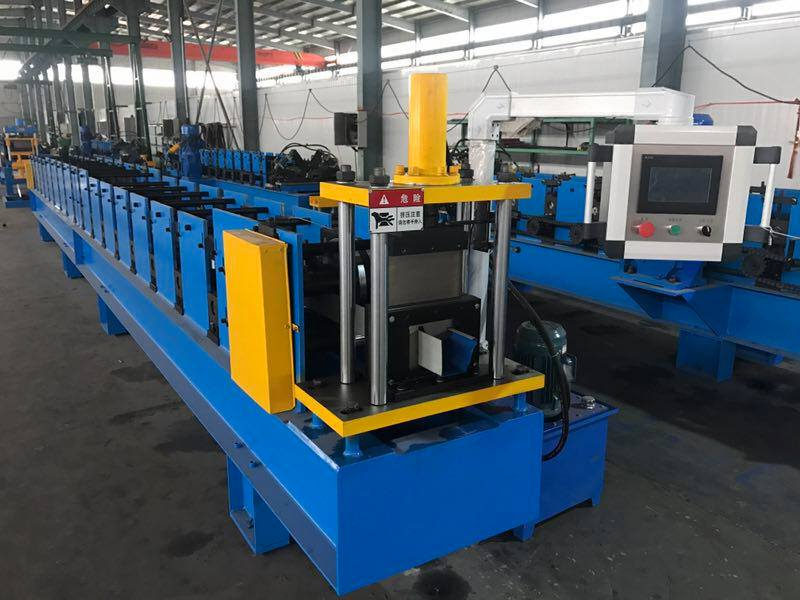

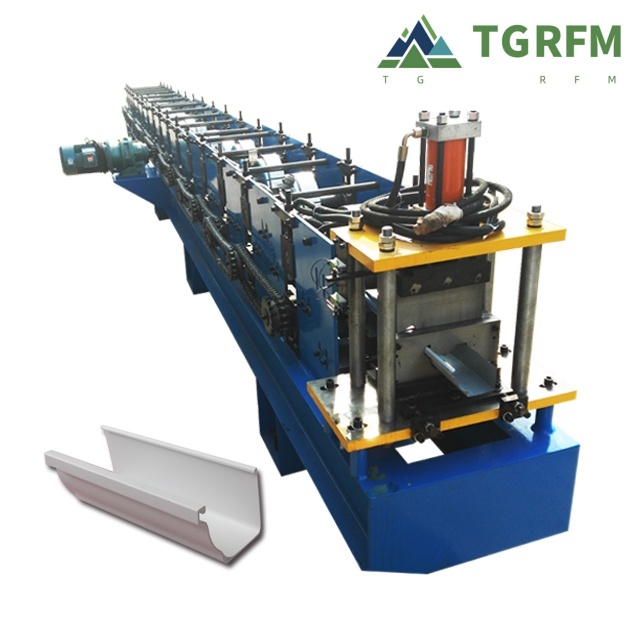

Gutter roll forming machine
- Rain gutter roll forming machine are attached to the roof edges and used to draw water down and away from the house and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts.
- INQUIRY

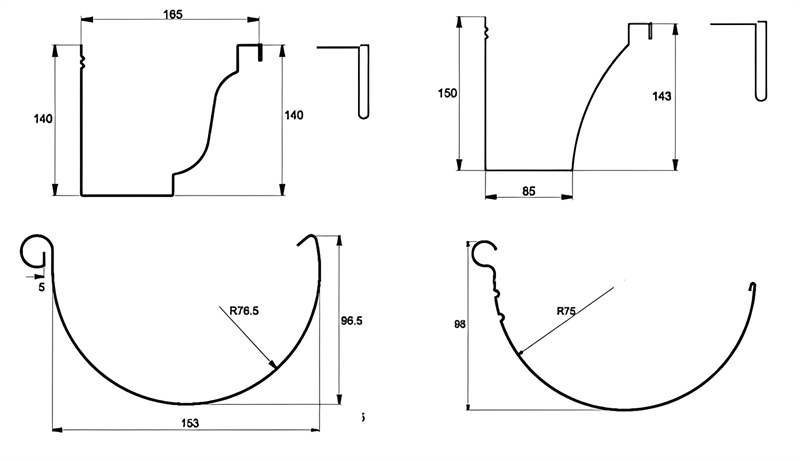

Production Profile：

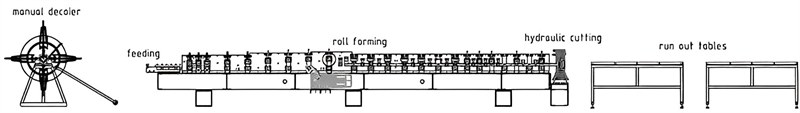

Production Line：
Production Parameters：
| Gutter Roll Forming Machine | ||
Machinable Material | A) Galvanized Coil | Thickness(MM): 0.3-0.8 According To Your Requirement |
| B) PPGI, PPGL | ||
| Yield Strength | 250 – 350 Mpa / 350-550Mpa | |
| Tensil Stress | 350 Mpa-550 Mpa | |
| Coil Width | As Per The Detailed Profile | |
| Forming Speed | 10-15 m/min | * Or According To Your Requirement |
| Forming Station | 18-24 Stations | * According To Your Profile Drawings |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Steel Plates Welded | * Individual Station (Optional) |
| Rollers’ Material | 45# | |
| Cutting System | Hydraulic Post Cut | * Hydraulic Servo Tracking Cutter (Optional) |
| Output Way | Roller Table | |
| Frequency Changer Brand | Delta | * Siemens (Optional) |
| Power Supply | 380V 50Hz | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

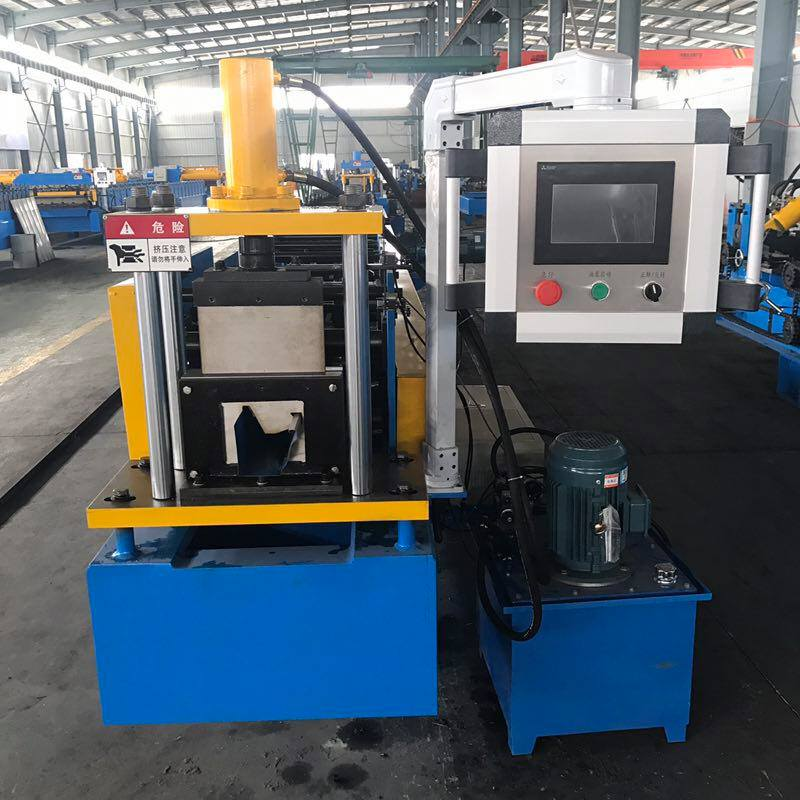

Production Details：

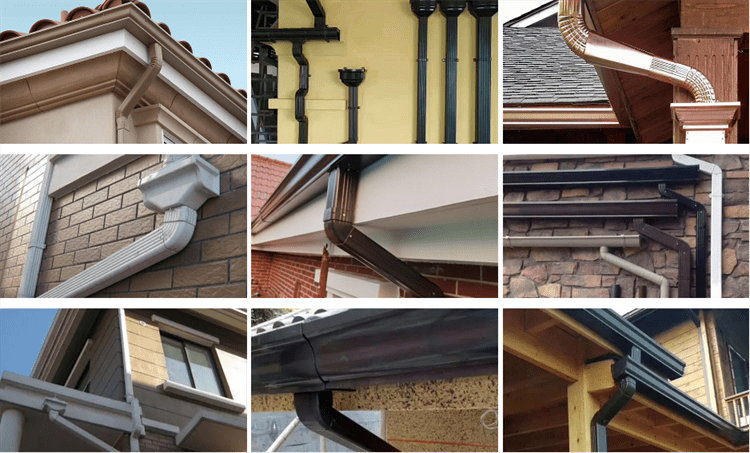

Application:
