Water Downpipe & Bender Forming Machine

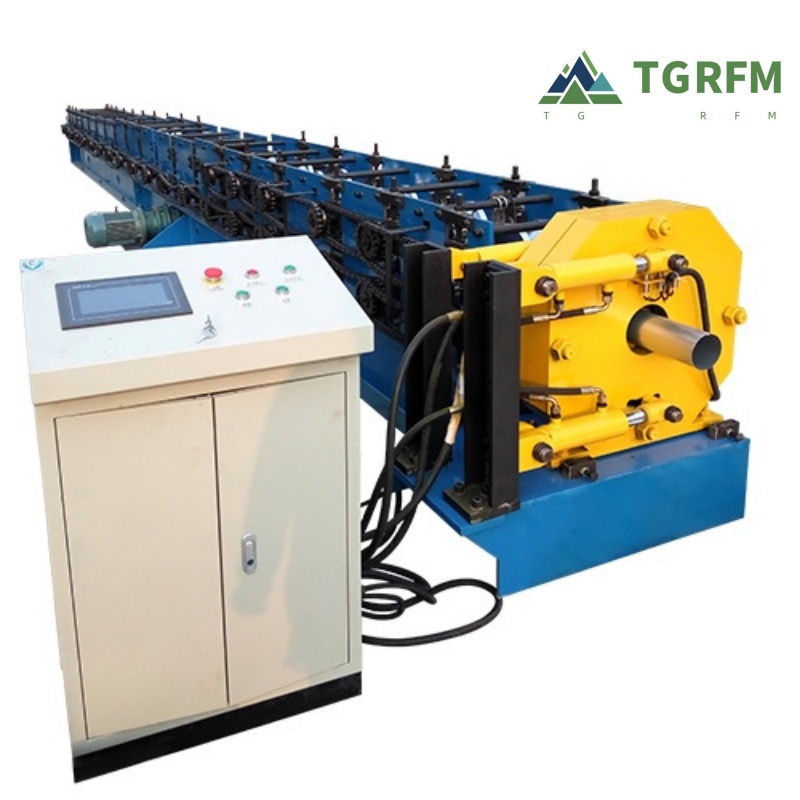

Downspout pipe roll forming machine
- Downspout pipe roll forming machine is used to produce downspout in rainwater goods system. Normally thickness of downspout and gutter could be 0.4mm-0.8mm, 0.8-1.5mm or as you requested with raw material: Aluminum, Galvanized steel, Painted steel, Galvalume, Stainless steel, etc.
- INQUIRY

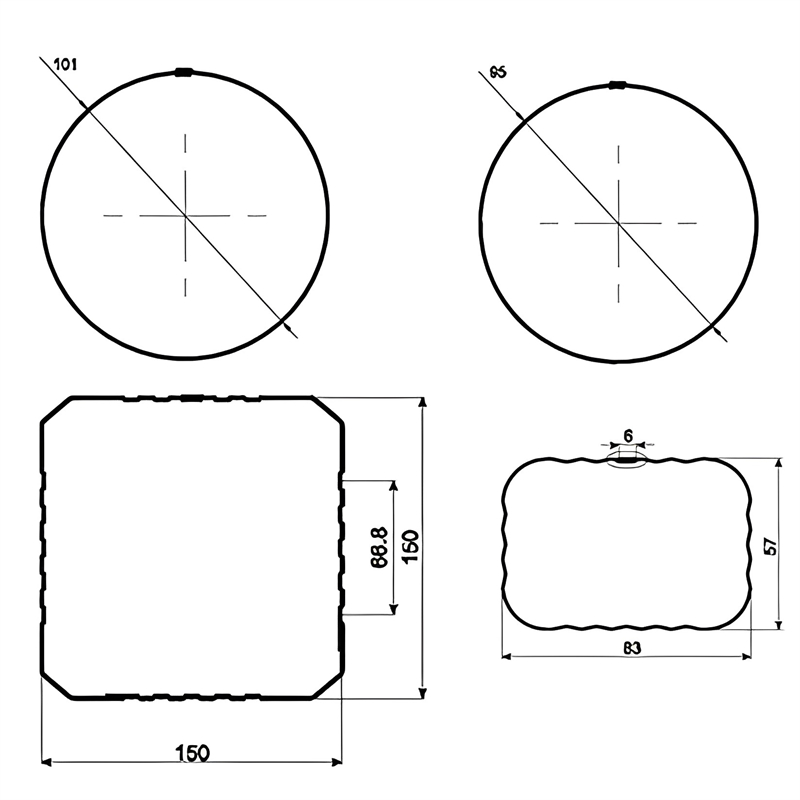

Production Profile：

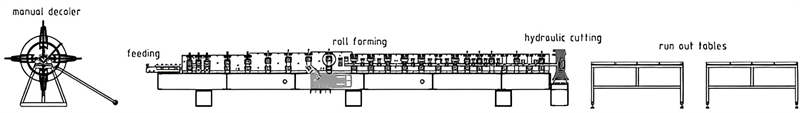

Production Line：
Production Parameters：
| Dounspout Roll Forming Machine | ||
Machinable Material | A) Galvanized Coil | Thickness(MM): 0.3-0.8 According To Your Requirement |
| B) PPGI, PPGL | ||
| Yield Strength | 250 – 350 Mpa / 350-550Mpa | |
| Tensil Stress | 350 Mpa-550 Mpa | |
| Coil Width | As Per The Detailed Profile | |
| Forming Speed | 10-15 m/min | * Or According To Your Requirement |
| Forming Station | 18-24 Stations | * According To Your Profile Drawings |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Driving System | Chain Drive | * Gearbox Drive (Optional) |
| Machine Structure | Steel Plates Welded | * Individual Station (Optional) |
| Rollers’ Material | 45# | |
| Cutting System | Hydraulic Post Cut | * Hydraulic Servo Tracking Cutter (Optional) |
| Output Way | Roller Table | |
| Frequency Changer Brand | Delta | * Siemens (Optional) |
| Power Supply | 380V 50Hz | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

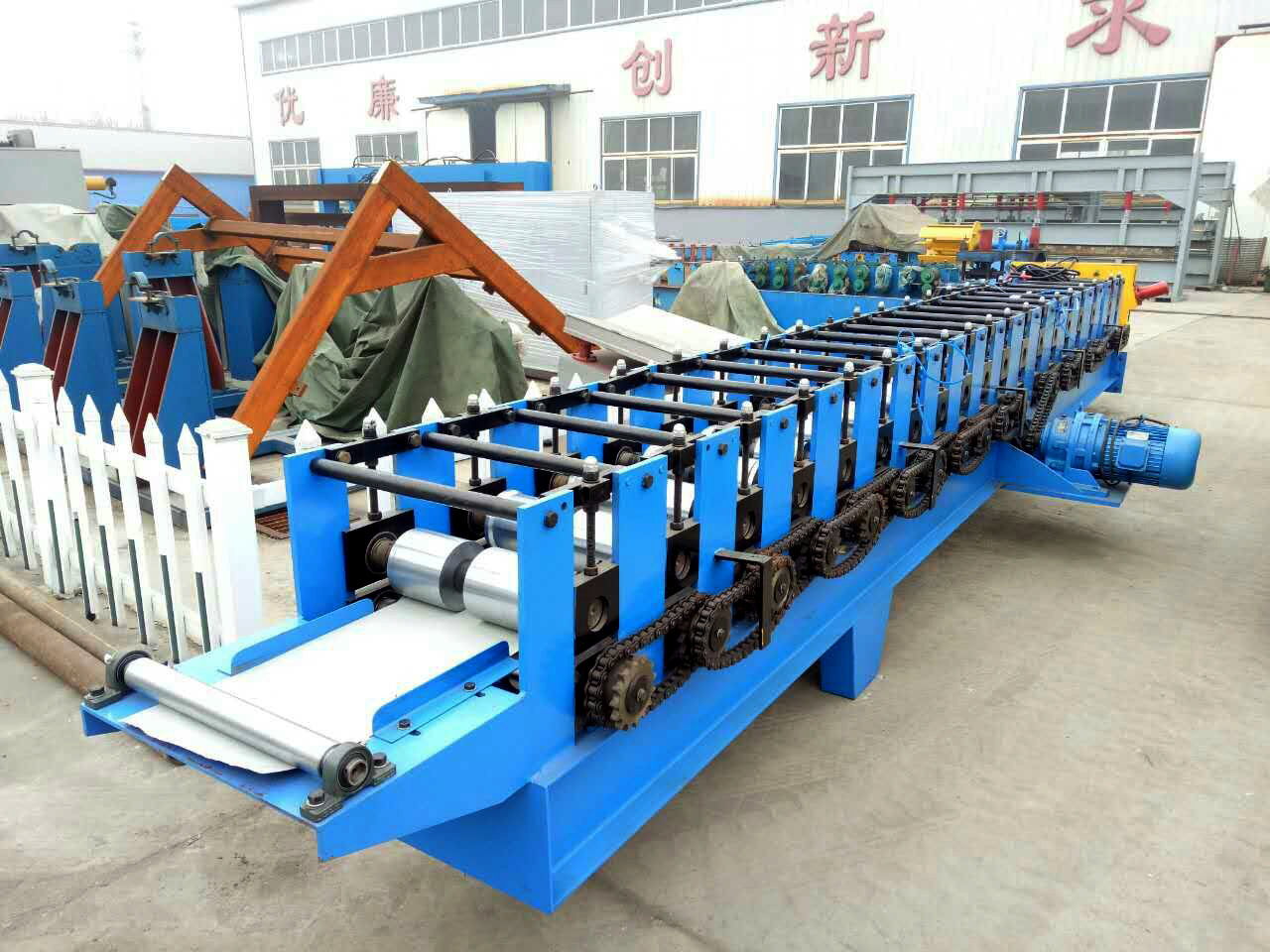

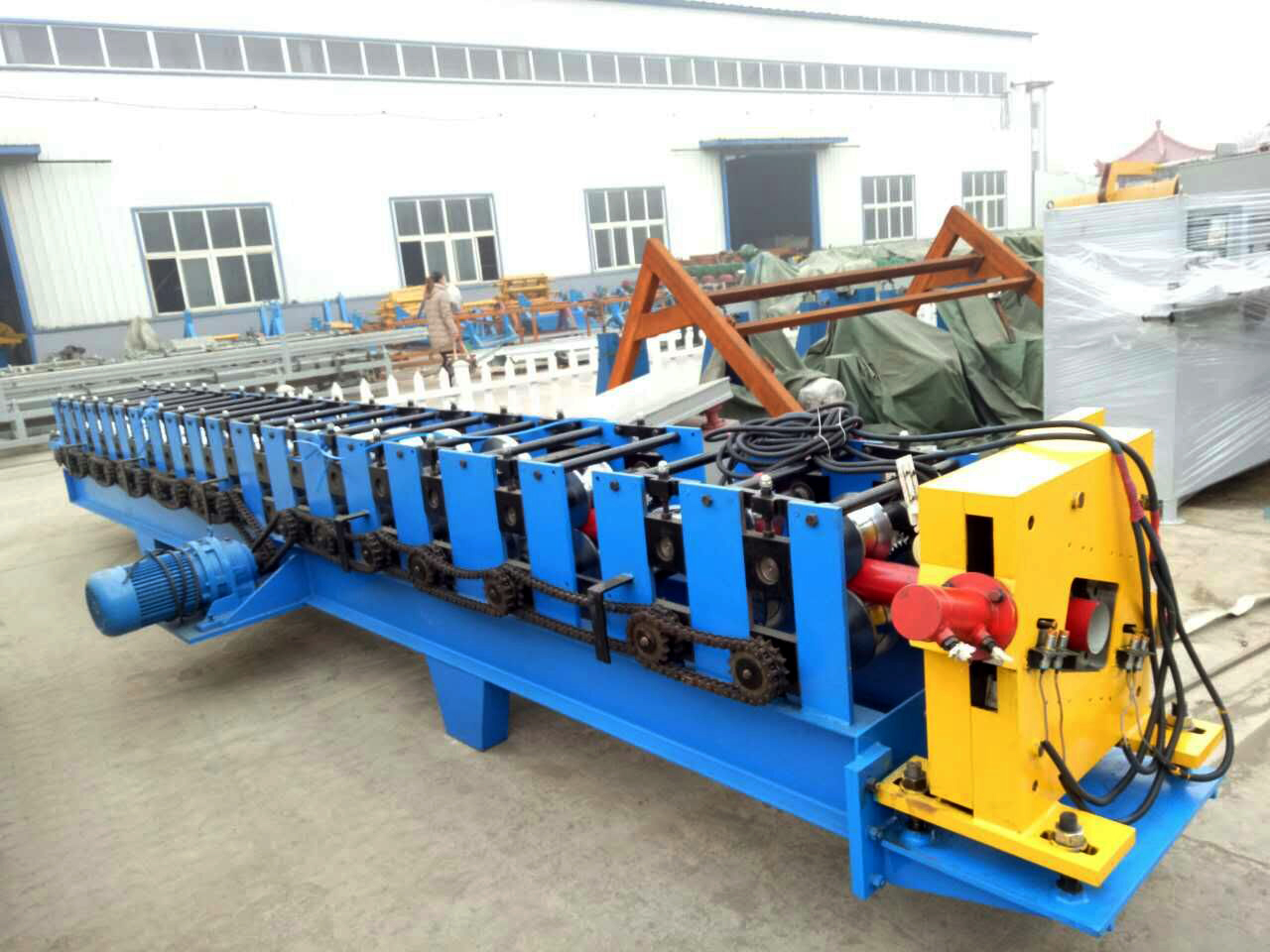

Production Details：
