Shutter Door Roll Forming Machine
Metal Door Frame Rolling Forming Machine
- Metal door frame rolling forming machine is designed to make the metal door frame in batch fully automatically. The knocked down drywall frame is for interior stud walls and for use with steel or wood doors. Drywall frames are designed for light to heavy duty applications in both commercial and institutional buildings
- INQUIRY

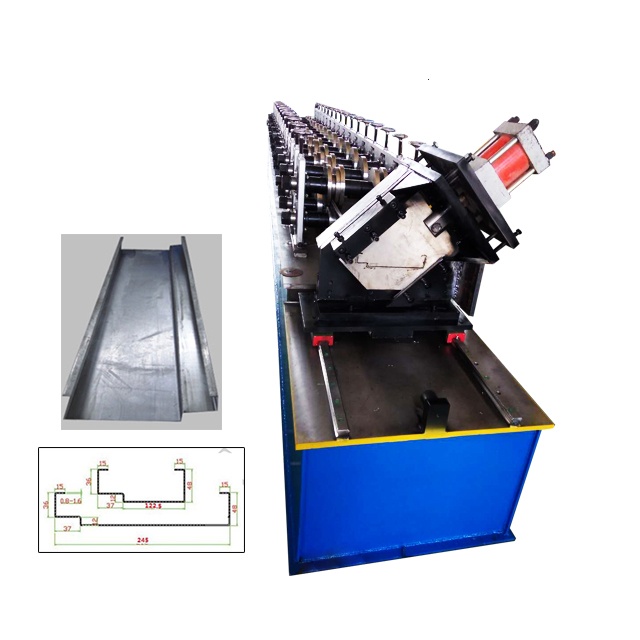

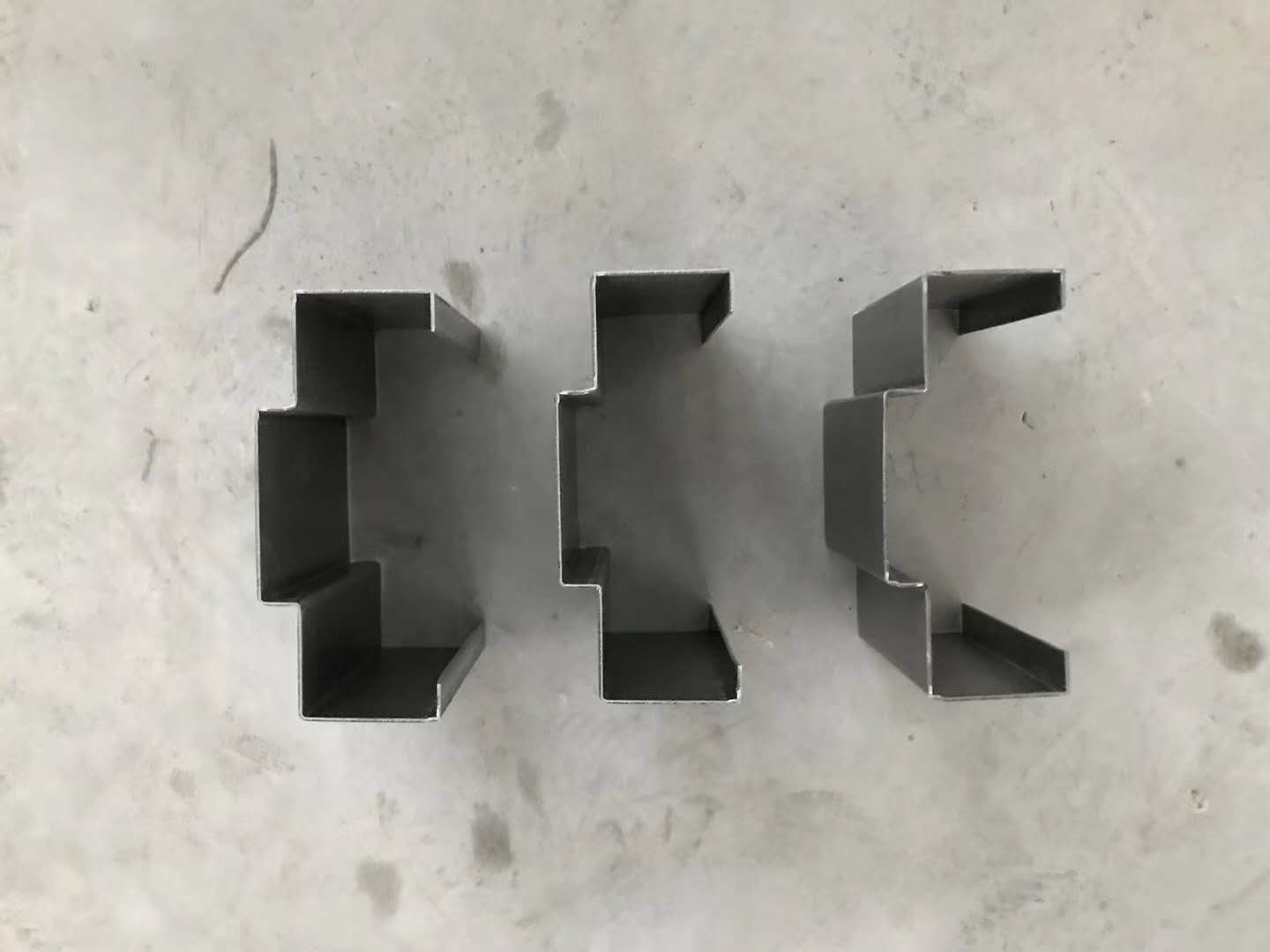

Production Profile：

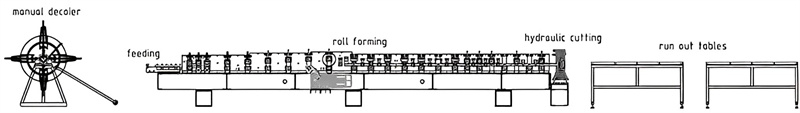

Production Line：
Production Parameters：
| Door Frame Roll Forming Machine | ||
Machinable Material | A) Galvanized Coil | Thickness(MM): 0.7-1.8 According To Your Requirement |
| B) PPGI, PPGL | ||
| Yield Strength | 250 – 350 Mpa / 350-550Mpa | |
| Tensil Stress | 350 Mpa-550 Mpa | |
| Coil Width | As Per The Detailed Profile | |
| Forming Speed | 10-15 m/min | * Or According To Your Requirement |
| Forming Station | 15-18 Stations | * According To Your Profile Drawings |
| Decoiler | Manual Decoiler | * Hydraulic Decoiler (Optional) |
| Driving System | Gear | * Chain(Optional) |
| Machine Structure | Individual Station | * Steel Plates Welded (Optional) |
| Rollers’ Material | 45# | |
| Cutting System | Hydraulic Post Cut | * Hydraulic Servo Tracking Cutter (Optional) |
| Output Way | Roller Table | |
| Frequency Changer Brand | Delta | * Siemens (Optional) |
| Power Supply | 380V 50Hz | * Or According To Your Requirement |
| Machine Color | Industrial Blue | * Or According To Your Requirement |

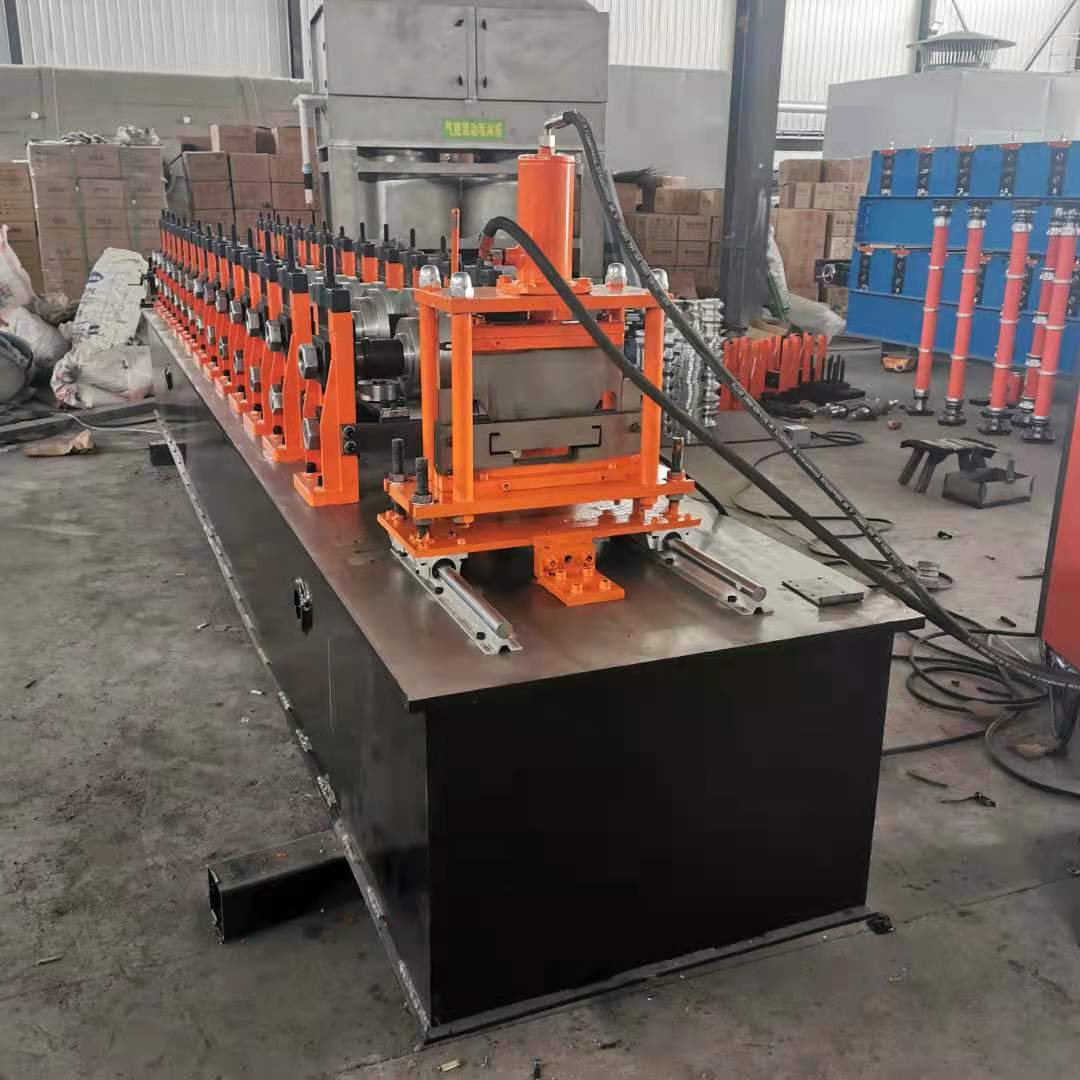

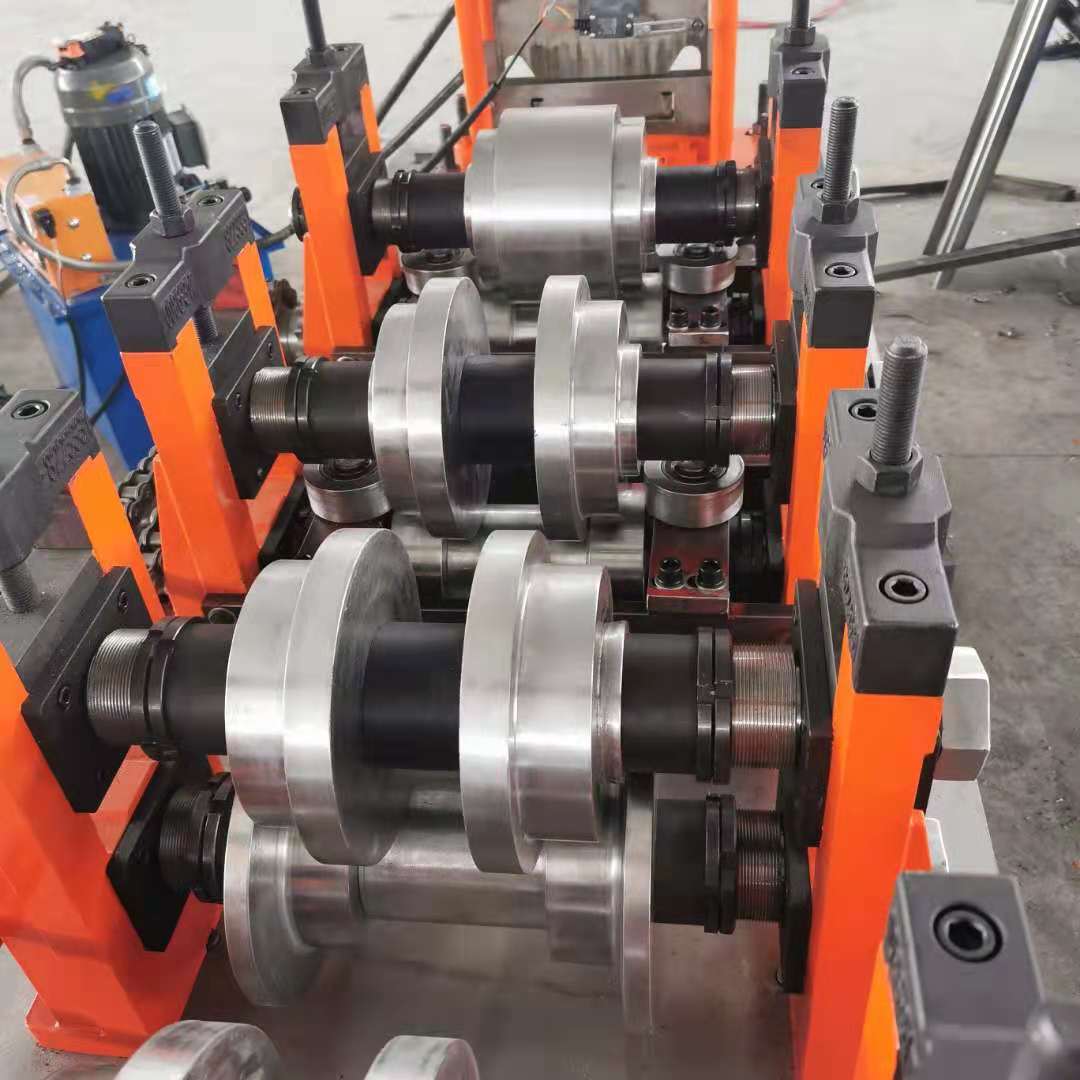

Production Details：
