Solar Panel Bracket Roll Forming Machine

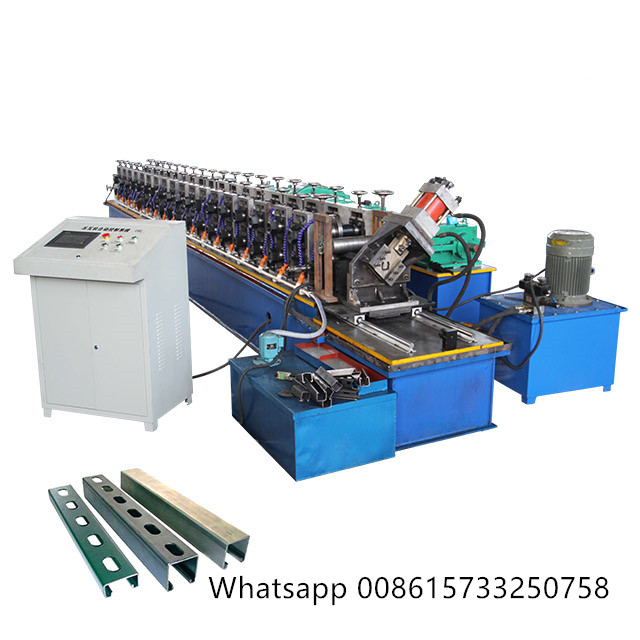

Solar Mounting Strut Channel Roll Forming Machine
- Strut channel roll forming machines are specialized equipment designed to produce C-shaped or U-shaped steel channels, commonly known as strut channels. These channels are widely used in construction, electrical, and mechanical industries for various support systems, including cable trays, solar panel mounting, and HVAC installations.
- INQUIRY
Production Profile：
Production Line：
Production Parameters：
Strut Channel Roll Forming Machine (Updated Version) | ||
Machinable Material | A) Hot-rolled And Cold Rolled Steel | Thickness(MM): 1.5-2.0, 2.0-2.5, up to 3mm |
B) Hot-dip Galvanized Sheet | ||
C) Pre-Galvanized Steel | ||
D) Mill (Plain/Black) Steel | ||
Yield strength | 250 – 550 Mpa | |
Tensil stress | G250 Mpa-G350 Mpa | |
Decoiler | Hydraulic Decoiler | * 2 in 1 Decoiler With Leveler And Servo Feeder (Optional) |
Punching System : | Hydraulic Punching Station (Individual) | * Punching Press (Optional) |
Forming Station | 20-22 Or 24-28 For Anti-seismic Strut | * According To Your Profile Drawings |
Driving System | Gearbox Drive | |
Machine Structure | Forged Iron station | |
Line Forming Speed | 15-20 (M/MIN) | * According To Final Configuration |
Rollers’ Material | GCr15 | * Cr12 (Optional) |
Cutting System | Post-cutting, Machine Stop To Cut | * Tracking Cutter (Optional) |
Frequency Changer Brand | Delta | |
PLC Brand | Delta | |
Power Supply | 380V 50Hz 3ph | * Or According To Your Requirement |
Machine Color | Industrial Blue | * Or According To Your Requirement |
Production Details：
Application:
