Floor Decking Roll Forming Machine

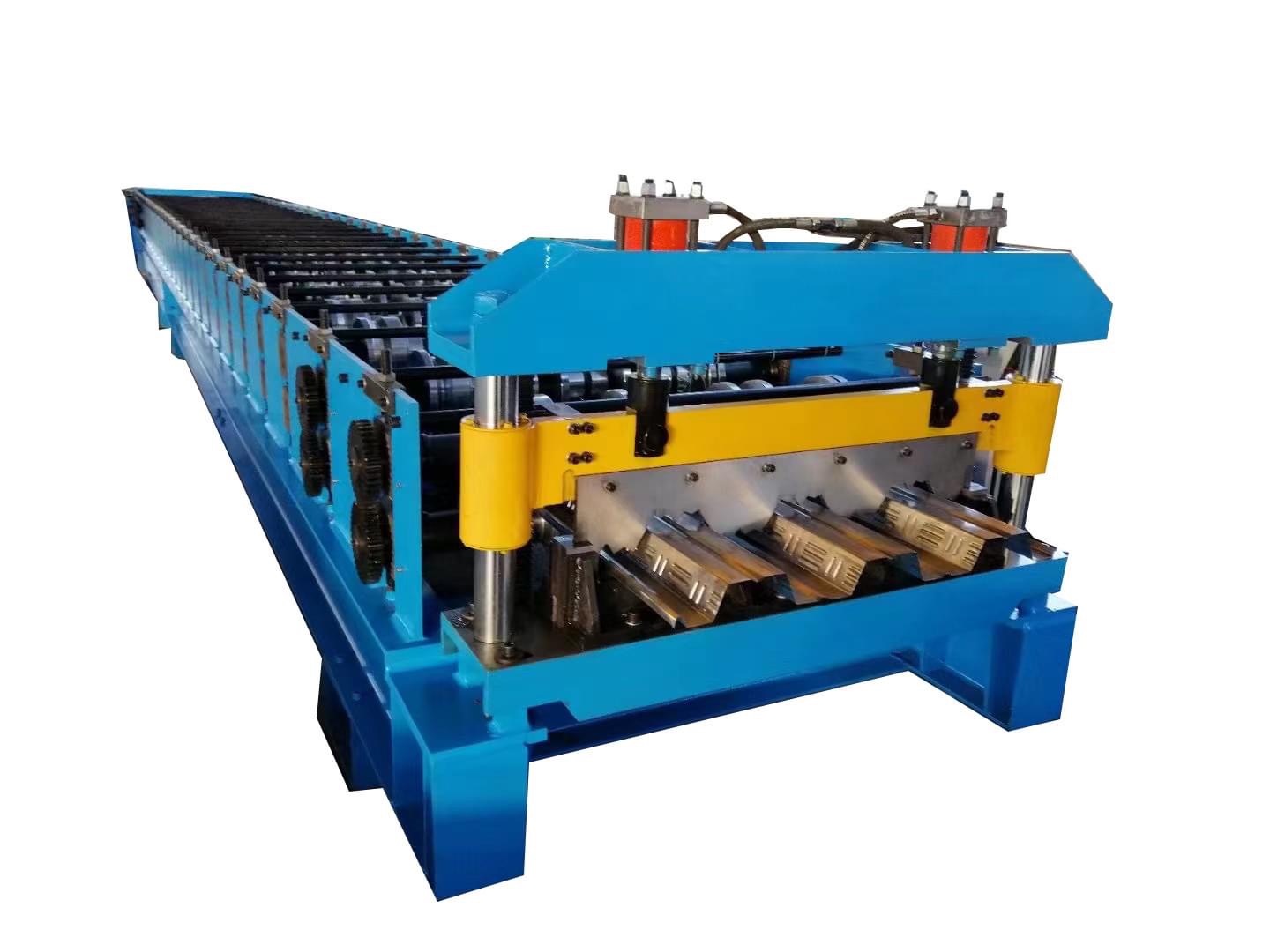

Floor Deck Roll Forming Machine

Floor deck roll forming machine, sometimes also named deck floor or metal deck roll forming machine, which is used to produce floor deck panel. It is used to support concrete or insulating membrane of a roof and developed to provide a structurally efficient product for use in roof and floor systems.
INQUIRY

Profile of floor deck:

Decoiler：

Function:To support the coil for production

Types:Manual and automatic for option

Capacity:Normal 5 tons,other weight also can customized

Roll former product parmeters：

Floor Deck Roll Forming Machine
Machinable Material	A) Galvanized Coil	Thickness(MM): 0.7-1.2 even up to 1.5 as per customer
Machinable Material	B) PPGI, PPGL	Thickness(MM): 0.7-1.2 even up to 1.5 as per customer
Yield Strength	250 – 350 Mpa
Tensil Stress	350 Mpa-500 Mpa
Coil Width	914mm, 1000mm, 1200mm, 1220mm, 1250mm etc
Nominal Forming Speed(M/Min)	10-15	* Or According To Your Requirement
Forming Station	About 24-32	* According To Your Profile Drawings
Decoiler	Manual Decoiler	* Hydraulic Decoiler (Optional)
Driving System	Chain Drive	* Gearbox Drive (Optional)
Machine Structure	Steel Plates Welded	* Cast Iron Stands (Optional)
Rollers’ Material	GCr 15	* Cr12Mov (Optional)
Cutting System	Hydraulic Post Cut
Frequency Changer Brand	Yaskawa	* Siemens (Optional)
Power Supply	380V 50Hz	* Or According To Your Requirement
Machine Color	Industrial Blue	* Or According To Your Requirement


Control system:

Our machine adopt famous brand in the control system,such as Siemens PLC and touch screen,Schneider low voltage apparatus and omron encoder,these brand electric parts have after-sale service in the whole world which is more convenient for customer
